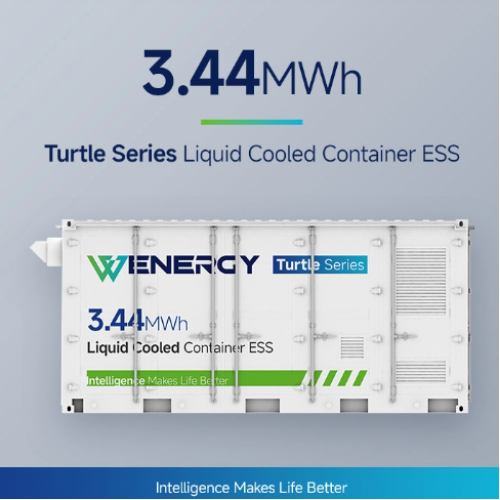

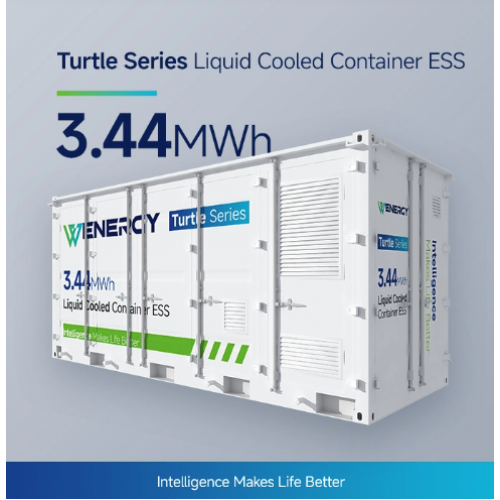

3.44MWh Grid Energy Storage Container – High-Capacity Utility BESS SolutioN
Product Description
Application Scenarios
PV power
Wind power
Power grid side
Industry and commerce
/ Product Highlights
Cost Savings
- Integrated energy storage system for easy installation, operation, and maintenance.
- Large module design offers 50% greater strength compared to traditional energy solutions.
Safety Prioritization
- Multiple balancing mechanisms ensure a consistent battery life cycle.
- Integrated gas and water fire extinguishing system guarantees system safety in extreme conditions.
Enhanced Efficiency
- 1500V platform design results in DC side efficiency of up to 93%.
- The outer box boasts a C4H anti-corrosion level, ensuring a service life of over 15 years.
Smart Functionality
- Multi-dimensional battery status analysis for quick fault analysis and localization.
- Cloud-based real-time monitoring for unattended operation.
Mode Turtle 3.44 Rated Capacity 3.44 MWh Rated Power 1.725 MW Rated Voltage 1228.8V Voltage Range 1075.2V ~ 1382.4V Battery Type LFP Soc Estimation Accuracy ≤5% Self-Discharge Rate Month ≤3% IP Protection Level IP54 Weight (kg) 33,000 Cooling Type Liquid Cooling Noise <65 dB ( 1m away from the System ) Communication Interface Wired: LAN, CAN, RS485 Communication Protocol Modbus TCP System Certification IEC/EN 62477, NFPA855, IEC/EN 62619, IEC/EN 60730, IEC/EN 63056, UL 1973, UL 9540A
Application Scenarios
PV power
Wind power
Power grid side
Industry and commerce
/ Product Highlights
Cost Savings
- Integrated energy storage system for easy installation, operation, and maintenance.
- Large module design offers 50% greater strength compared to traditional energy solutions.
Safety Prioritization
- Multiple balancing mechanisms ensure a consistent battery life cycle.
- Integrated gas and water fire extinguishing system guarantees system safety in extreme conditions.
Enhanced Efficiency
- 1500V platform design results in DC side efficiency of up to 93%.
- The outer box boasts a C4H anti-corrosion level, ensuring a service life of over 15 years.
Smart Functionality
- Multi-dimensional battery status analysis for quick fault analysis and localization.
- Cloud-based real-time monitoring for unattended operation.
| Mode | Turtle 3.44 |
| Rated Capacity | 3.44 MWh |
| Rated Power | 1.725 MW |
| Rated Voltage | 1228.8V |
| Voltage Range | 1075.2V ~ 1382.4V |
| Battery Type | LFP |
| Soc Estimation Accuracy | ≤5% |
| Self-Discharge Rate Month | ≤3% |
| IP Protection Level | IP54 |
| Weight (kg) | 33,000 |
| Cooling Type | Liquid Cooling |
| Noise | <65 dB ( 1m away from the System ) |
| Communication Interface | Wired: LAN, CAN, RS485 |
| Communication Protocol | Modbus TCP |
| System Certification | IEC/EN 62477, NFPA855, IEC/EN 62619, IEC/EN 60730, IEC/EN 63056, UL 1973, UL 9540A |
3.44MWh Grid Energy Storage Container – High-Capacity Utility BESS Solution
- Product Code: GP-BESS344
- Availability: Project Quotation Item Only
