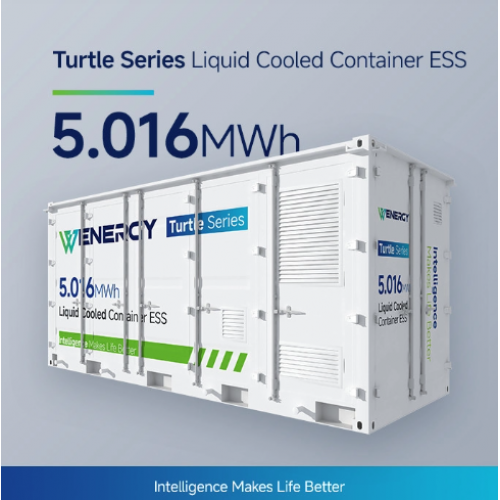

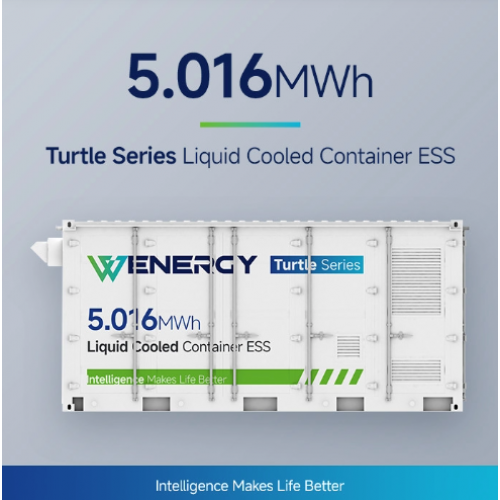

Utility Battery Storage System – 5 MWh Container for Grid Applications

Application Scenarios



PV power
Wind power
Power grid side
Industry and commerce





/ Product Highlights



Reduced Cost

● Integrated energy storage system for easy installation, operation, and maintenance.

● Large module design, offering a 50% stronger solution compared to traditional energy sources.

● 20-ft container capacity upgraded from 3.44MWh to 5.016MWh, saving over 30% space.



Safty

● Multiple balancing measures ensure consistent battery life cycle.

● Integrated gas and water fire extinguishing device ensures system safety in extreme circumstances.

● Outer box corrosion resistance up to C4H level, with a service life exceeding 15 years.



Increased Efficiency

● Designed based on the 1500V platform for a DC side efficiency of up to 93%.

● Multi-dimensional battery analysis for quick issue identification.

● Cloud-based real-time monitoring for seamless operation.





/ Quality Assurance



5 Years for Equipment, 10 Years for Battery Performance

Globally Certified Excellence in C&I Energy Storage Solutions

Model	Turtle 5
Battery Type	LFP 314Ah
Rated Energy	5.016 MWh
Rated Power	2.5 MW
DC Rated Voltage	1331.2V
DC Voltage Range	1164.8V ~ 1497.6V
AC Rated Voltage	690V
Max. Efficiency of System	＞89%
IP Protection Level	IP54
Weight (kg)	45,000
Cooling Type	Liquid Cooling
Noise	<65 dB ( 1m away from the System )
Communication Interface	Wired: LAN, CAN, RS485
Communication Protocol	Modbus TCP
System Certification	IEC 62619,IEC 60730 - 1,IEC 63056,IEC/EN 62477,IEC/EN 60730,UL 9540A,UL 9540,UL 1973,CE Marking,UN 38.3,ISO 9001,ISO 14001,ISO 45001,NFPA 855,TÜV Certification,DNV Certification





/ System Components



The system consists of battery clusters (6 clusters, each cluster has 8 packs), PDU, DC combiner box, EMS, thermal management system, fire extinguishing system, etc. The system has external communication functions and can transmit data with external supporting HMI, PCS, fire protection and other equipment, and can continue to operate safely and stably for a long time.



/ System layout



No.	Name
1	Audible and Visual Alarm
2	Nameplate
3	Fire Control Box
4	Ground Point
5	Air Inlet
6	Air Outlet
7	Fire Extinguishing Water Outlet
8	DC Combiner Box
9	Fire Extinguishing System
10	Battery Module
11	High-Voltage Box (PDU)
12	Thermal Management System
13	Liquid Cooling Unit
14	Combiner Cabinet





/ Smart Energy, Smart Choices



• iEMS The“Brain”of Energy Storage System

Platform Connection | Statistics | Energy Management | Monitoring

• iBMS Intelligent Battery Management

Information Collection | Security Management | State Estimation |

Charge and Discharge Management | Balance Management

• 7*24 Hours ▏360 Degrees ▏30+ Cloud Security Policy
