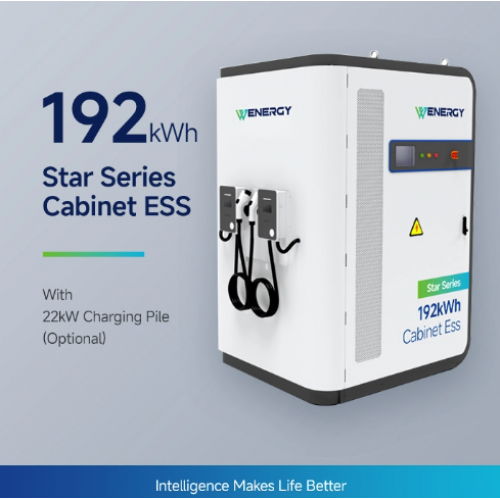

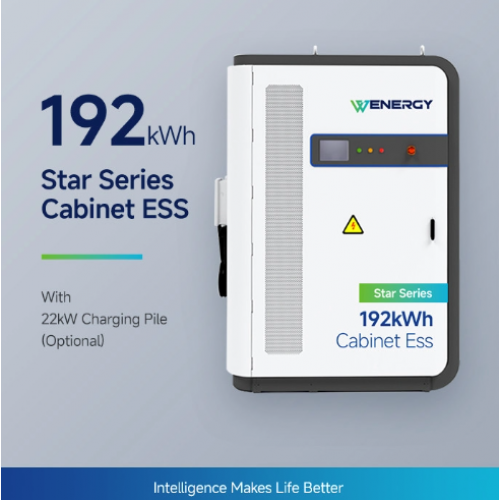

192kWh All-in-One Solar + Storage + Diesel + Charging System | Multi-Energy Hybrid Solution
| Certification: | UN38.3,IEC 62619,IEC/EN 62619,IEC 60730-1,IEC 63056,IEC/EN 61000,IEC 60529,IEC 62040 or 62477,RF/EMC,UKCA (IEC 62477-1),UKCA (CE-EMC Transfer), |
Application Scenarios
All-in-one Cabinet ESS is a versatile solution for multiple applications, offering reliable energy storage and cost-saving benefits.
Residential Energy Storage
● Store solar energy for home use, reducing electricity bills and providing backup power during outages.
Commercial Buildings
● Support shopping malls, office buildings, and hospitals by ensuring uninterrupted power supply and lowering energy costs.
Public Facilities
● Provide reliable power for schools, government buildings, and remote areas, ensuring continuous operations.
Industrial Applications
● Integrate with solar panels and diesel generators to store excess energy, reducing grid dependency and ensuring critical equipment remains operational.
Electric Vehicle (EV) Charging
● Directly charge electric vehicles using stored energy, enhancing energy efficiency and supporting sustainable transportation.
/ Benefits
Cost Savings: Reduce electricity expenses by storing energy during low-demand periods.
Energy Independence: Minimize reliance on traditional power grids.
Uninterrupted Power: Ensure continuous operation of essential systems and equipment.
Sustainability: Support renewable energy integration and reduce carbon footprint.
Product Description
*Standard: PCs,DCDC | Optional: MPPT,STS, ATS, Charging Pile
Model | Star 192( Integrated Solar, Storage, and Diesel Charging System) | |
Rated Energy | 192.92kWh | |
DC Voltage Range | 480~700.8V | |
Rated Power | 125kW | |
AC Rated Voltage | 400V | |
Rated Output Frequency | 50Hz | |
IP Protection Grade | IP54 | |
Corrosion-proof Grade | C4H | |
Cooling Type | Liquid Cooling | |
Noise | <65dB(1m Away from System) | |
Dimension(W*D*H) | (1800±10)*(1435±10)*(2392±10)mm | |
Communication Interface | Ethernet | |
Communication Protocol | Modbus TCP/IP | |
System Certification | GB/T 36276, GB/T 34131, GB/T 34120, UL1973, UN38.3, IEC/EN 62477, IEC/EN 62619, IEC/EN 63056 | |
*Standard:PCS,DCDC | Optional:MPPT,STS,ATS,Charging Pile | ||
/ System Configuration
The system consists of a battery system (2 to 4 packs), a power conversion system (PCS), a photovoltaic converter (MPPT), a voltage converter (DCDC), a parallel grid and off-grid switch (STS), a multi-power transfer switch (ATS), an AC charging pile, a liquid cooling unit, a fire suppression system, an EMS (Energy Management System), and a power distribution unit (PDU), among other components. The system features external communication capabilities and is designed for safe and stable operation over extended periods.
/ System Layout
No. | Number | Name |
1 | A | Load Breaker 01 (optional) |
2 | B | Load Breaker 02 |
3 | C | Main Breaker 01 |
4 | D | Main Breaker 02 (optional) |
5 | E | STS (optional) |
6 | F | Photovoltaic Converter MPPT (optional) |
7 | G | Voltage Converter DCDC |
8 | H | PCS |
9 | I | Liquid Cooling Unit |
10 | J | EMS |
11 | K | PDU |
12 | L | Battery System (optional 2 to 4 packs) |
13 | M | Multi-Power Transfer Switch ATS (optional) |
14 | N | Fire Suppression System |
15 | P | Display Screen |
16 | Q | Indicator Light |
17 | R | Emergency Stop Button |
18 | S | AC Charging Pile (optional) |
192kWh Multi-Energy Hybrid System: Solar, Storage, Diesel & EV Charging, Multi-Energy Hybrid Solution
- Product Code: GP-STAR192
- Availability: Project Quotation Item Only
