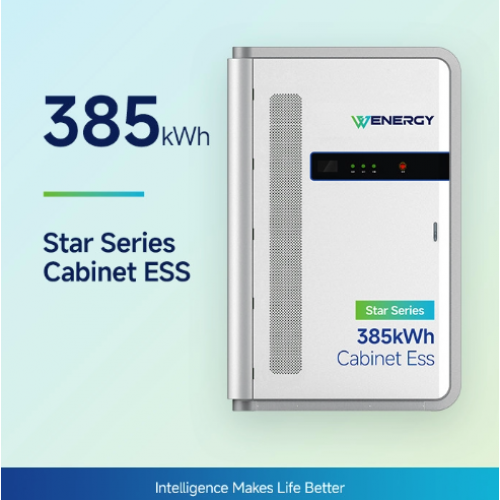

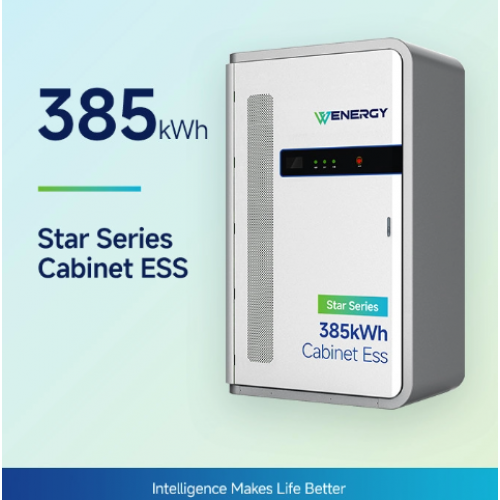

385kWh Modular Lithium Battery Energy Storage System for Commercial Use

Application Scenarios



New Energy Generating, Distributed Generating, Micro-grid ESS, EV Charge, City ESS, Industrial & Commercial ESS, etc.

Model	Star 385
System Parameters
Battery Type	LFP 314Ah
Rated Capacity	385kWh
Cooling Type	Liquid Cooled
IP Protection Level	IP54
Corrosion-proof Grade	C4H
Fire Protection System	Aerosol Fire Fighting
Noice	＜65dB (1m Away from the System)
Dimension	1578mm*1380*2500mm
Weight	≤3900kg
Working Temp. Range	-30℃~55℃ (Derating When＞45℃)
Relative Humidity Range	0~ 95 % (Non-condensing)
Communication Interface	RS485 / CAN
Communication Protocol	Modbus RTU
Cycle Life	≥10000
System Certification	GB/T 36276, GB/T 34131, GB/T 34120, IEC62619, UL1973, UL9540A, UN 38.3, IEC/EN 61000
Max. Efficiency of System	＞93%
Quality Guarantee	≥5 Years
EMS	Not Possess
Application Scenarios	New Energy Generating, Distributed Generating,Micro-grid ESS, EV Charge, City ESS, Industrial & Commercial ESS, etc.
DC Battery Parameters
Rated Voltage	1228.8V
Voltage Range	960 ~ 1401.6V
Charge & Discharge Ratio	0.5P
AC Side Parameters
AC/DC Converter Grid-connected Certification	GB/T 34120-2017, GB/T 34133CE, EN50549-1:2019+AC.2019-04, CEI 0-21, CEI 0-16, NRS097-21-1:2017, EN50549, C10/11:2019, EN50549-1&10, G99, VDE-AR-N 4105, VDE-AR-N 4110, VDE-AR-N 4120, UNE 217002, UNE 217001, NTS631, TOR Erzeuger, NRS 097-2-1, AS 4777.2
