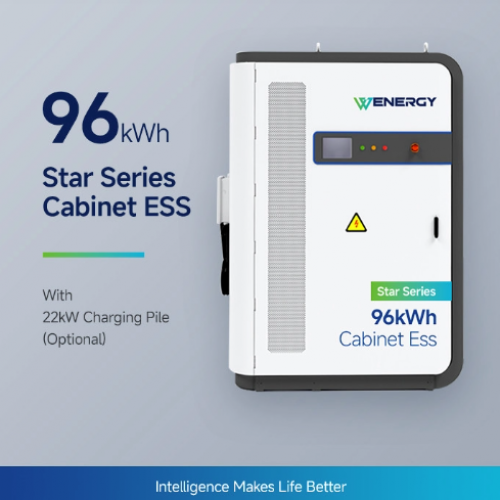

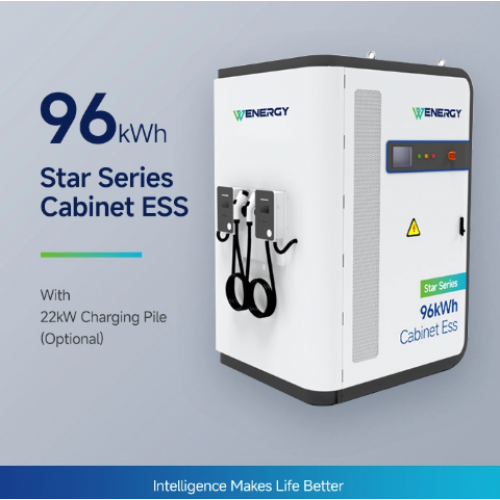

96kWh All-in-One Solar + Storage + Diesel + Charging System | Multi-Energy Hybrid Solution

Certification:UN38.3,IEC 62619,IEC/EN 62619,IEC 60730-1,IEC 63056,IEC/EN 61000,IEC 60529,IEC 62040 or 62477,RF/EMC,UKCA (IEC 62477-1),UKCA (CE-EMC Transfer),
Model Number:Star 192pro/60 96.46kWh (Integrated Solar,Storage,and Diesel Charging System

Product Description

Application Scenarios



All-in-one Cabinet ESS is a versatile solution for multiple applications, offering reliable energy storage and cost-saving benefits.



    Residential Energy Storage

      Store solar energy for home use, reducing electricity bills and providing backup power during outages.



    Commercial Buildings

      Support shopping malls, office buildings, and hospitals by ensuring uninterrupted power supply and lowering energy costs.



    Public Facilities

      Provide reliable power for schools, government buildings, and remote areas, ensuring continuous operations.



    Industrial Applications

     Integrate with solar panels and diesel generators to store excess energy, reducing grid dependency and ensuring critical equipment remains operational.



    Electric Vehicle (EV) Charging

      Directly charge electric vehicles using stored energy, enhancing energy efficiency and supporting sustainable transportation.





      Benefits



      Cost Savings: Reduce electricity expenses by storing energy during low-demand periods.



      Energy Independence: Minimize reliance on traditional power grids.



      Uninterrupted Power: Ensure continuous operation of essential systems and equipment.



      Sustainability: Support renewable energy integration and reduce carbon footprint.





      Product Description


        *Standard: PCS,DCDC | Optional: MPPT,STS, ATS, Charging Pile (22kw)



        ModelStar192 96.46kWh (Integrated PV, ESS, Diesel and EV Charging Capabilities)
        Rated Energy96.46kWh
        Voltage Range240~350.4V
        Rated Power125kW
        Rated Output Frequency50Hz
        IP Protection GradeIP54
        Corrosion-proof GradeC4H
        Cooling TypeLiquid Cooling
        Noise<65dB(1m Away from System)
        DimensionW1600*D1435*H2200mm
        Communication InterfaceEthernet
        Communication ProtocolModbus TCP/IP
        *Standard:PCS,DCDC I Optional:MPPT,STS,ATS,Charging Pile





        System Configuration



        The system consists of a battery system (2 to 4 packs), a power conversion system (PCS), a photovoltaic converter (MPPT), a voltage converter (DCDC), a parallel grid and off-grid switch (STS), a multi-power transfer switch (ATS), an AC charging pile, a liquid cooling unit, a fire suppression system, an EMS (Energy Management System), and a power distribution unit (PDU), among other components. The system features external communication capabilities and is designed for safe and stable operation over extended periods.



        96kWh All-in-One Solar + Storage + Diesel + Charging System | Multi-Energy Hybrid Solution 0





        /  System Layout



        No.

        Number

        Name

        1

        A

        Load Breaker 01 (optional)

        2

        B

        Load Breaker 02

        3

        C

        Main Breaker 01

        4

        D

        Main Breaker 02 (optional)

        5

        E

        STS (optional)

        6

        F

        Photovoltaic Converter MPPT (optional)

        7

        G

        Voltage Converter DCDC

        8

        H

        PCS

        9

        I

        Liquid Cooling Unit

        10

        J

        EMS

        11

        K

        PDU

        12

        L

        Battery System (optional 2 to 4 packs)

        13

        M

        Multi-Power Transfer Switch ATS (optional)

        14

        N

        Fire Suppression System

        15

        P

        Display Screen

        16

        Q

        Indicator Light

        17

        R

        Emergency Stop Button

        18

        S

        AC Charging Pile (optional)




        Certifications



        ●  International General Certifications

        UN38.3,IEC 62619,IEC/EN 62619

        ●​  Functional Safety and Energy Efficiency Certifications
        IEC 60730-1,IEC 63056,IEC/EN 61000

        ●​  Structural and Protection Certifications
        IEC 60529

        ●​  European Market Certifications
        IEC 62040 or 62477,RF/EMC,UKCA (IEC 62477-1),UKCA (CE-EMC Transfer)









        96kWh All-in-One Solar + Storage + Diesel + Charging System | Multi-Energy Hybrid Solution

        • Product Code: GP-STAR96
        • Availability: Project Quotation Item Only
