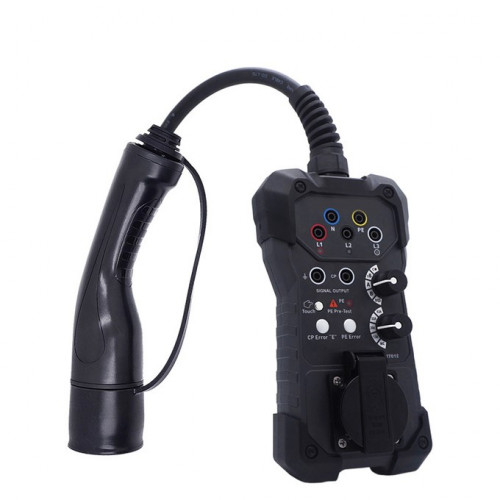

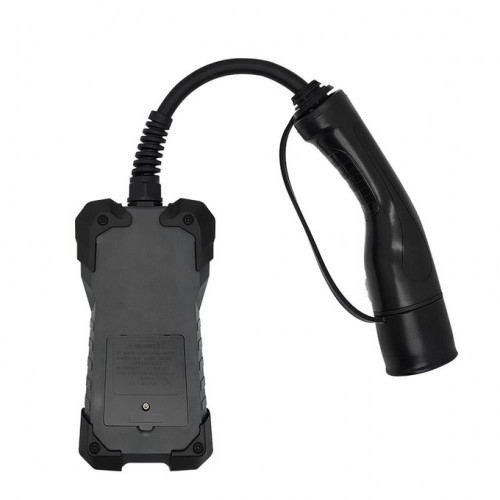

EV-Eco EVSE Adaptor for EV Charging Station Tester in Black Carry Case

Specifically designed for electric vehicle charging stations, compatible with multiple international standards to ensure the safety and reliability of charging stations.

Features



Multi-Standard Support— Compatible with Various Protocols
Extensive Evaluation Functions— Emulate Charging Conditions; Preliminary Testing Capabilities; Fault Replication
Protective Measures— Electrical Current Leakage Examination; Adherence to Certified Norms (IEC/EN 61010-1, IEC/EN 61010-2-030, CAT III 600V standards)
Intuitive Operation— Visual Status Indicator; Adaptable Output Connectors
Robustness and Dependability— IP54 Rated for Resistance to Dust and Water; Premium-Grade Components
Advanced Technical Features— Accommodates Different Voltage Systems (Single-Phase and Three-Phase); Efficient Circuit Protection (10A/250V Fuse)



Specifications
Mode
Test Object		AC Charging Station

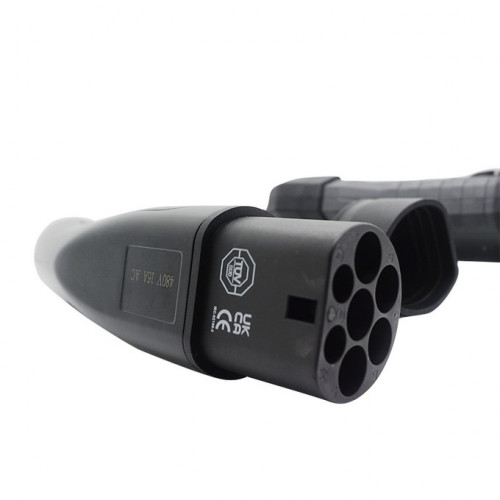

Test Interface		Type2(European Standard)
Simulate Charging State		A,B,C or D
PE Pre-Testing		√
CP Pre-Testing		√
Simulate Cable Resistance		√
Simulated CP Error		√
Simulated PE Error		√
Charging Output Terminal		4mm port/European standard socket
Support Voltage Types		Single phase or three-phase
Indicator Light		√
Fuse		10A/250V
General
Protection Grade	Case IP54
Safety Rating	IEC/EN 61010-1,IEC/EN61010-2-030,CAT Ⅲ 600V
Measurement Category	IEC/EN 61851-1,IEC/HD 60364-7-722

This adaptor is designed for AC charging stations. They comply with various international standards and are compatible with different charging station interfaces.


• Test Interface: Complies with SAE J1772 (Type 1), Type 2 (European Standard), and NACS (Tesla).

• Testing Functions: Supports simulating charging states (A, B, C, or D), PE pre-testing, CP end testing, simulating cable resistance, and simulating CP and PE errors.

• Electrical Leakage Test: Includes an electrical leakage trip test (≥6mA/110V).
