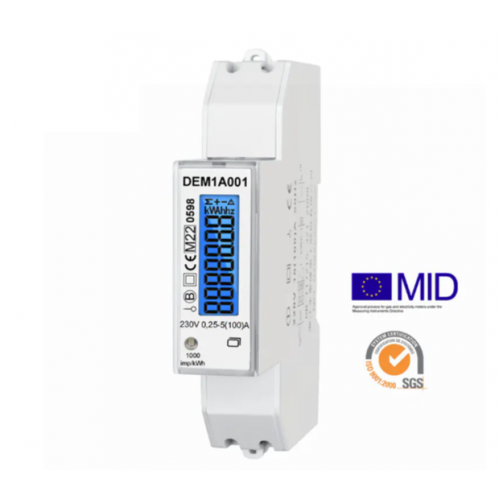

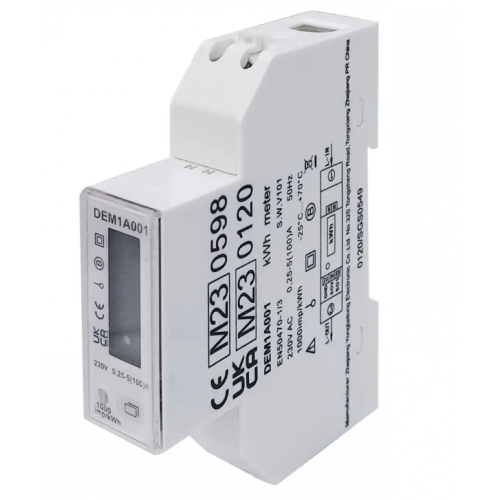

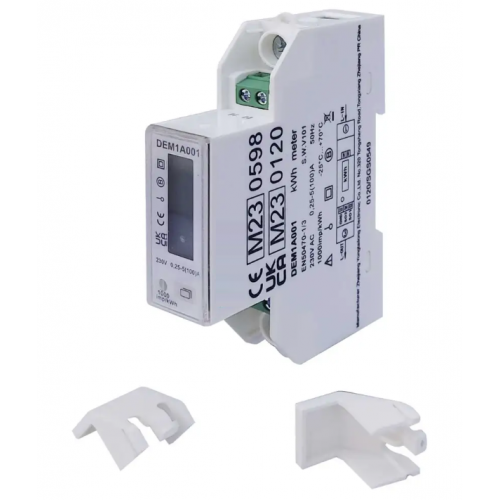

100A Single Phase Bi-directional MID Certified kWh Meter

The DEM1A001 is the best value MID approved meter on the market. This lightweight 100 Amp DIN rail meter is only 18mm wide.It displays energy (kWh) on it’s blue backlit display and comes with a single pulse output.

Features

• Meter type: single phase meter

• Din rail mounting

• MID B+D certified

• Smart: No

• Tariffs: single

• Module width: 1

• Import and Export

• Bidirectional

• Output Type: Pulse
•


Specifications

Accuracy Class

B

Colour

Light Grey

Compliance

CE, MID B+D Certified

Depth

72mm

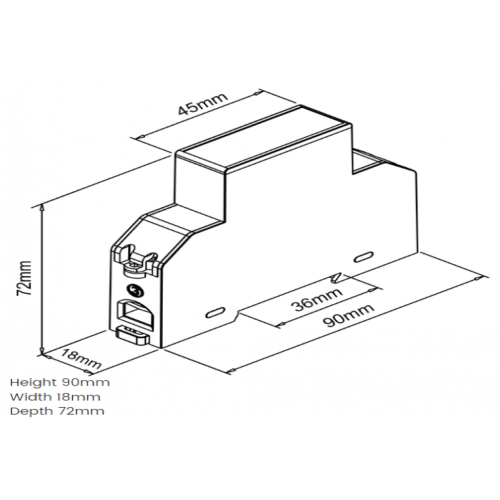

Dimensions

(H)90 mm x (W)18 mm x (D)72 mm

Display Type

LCD 5+2 = 99999.99kWh

Frequency

50/60 Hz

Guarantee

1 Year

Height

90mm

Material

Plastic

Maximum Current

100A

Mounting

DIN Rail

Number of Modules

1

Number of Phases

1

Operating Temperature Range

-25 - +70°C

Packaging Types

Box

Standards

EN50470-1/3

Unspsc V18

39121106

Unspsc V24

39121106

Voltage Rating

230V

Weight

0.105kg

Width

18mm
