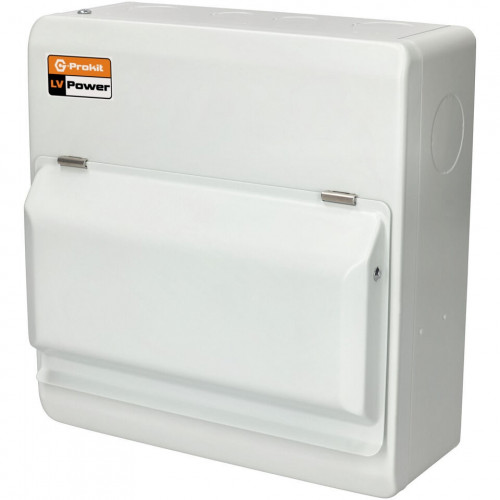

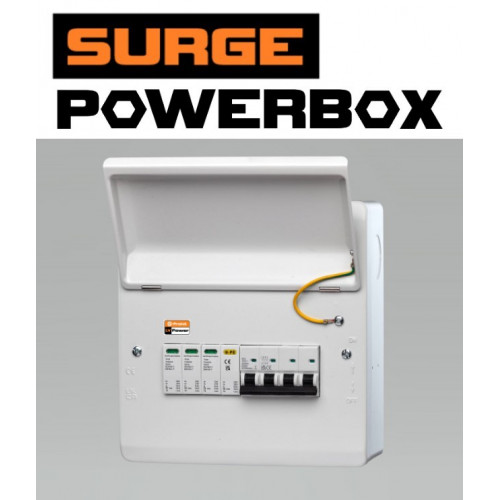

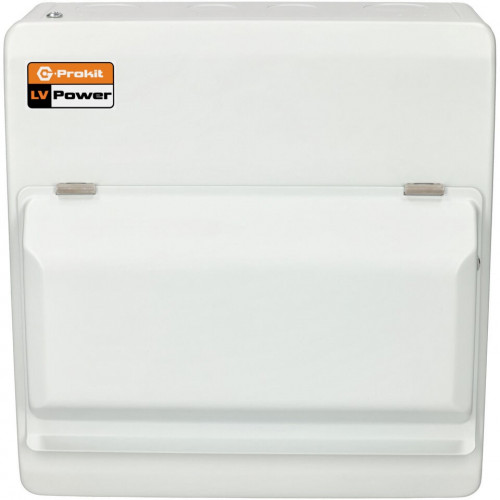

Three phase SPD unit which consists of an 8 way IP40 metal enclosure with 4 pole type C MCB

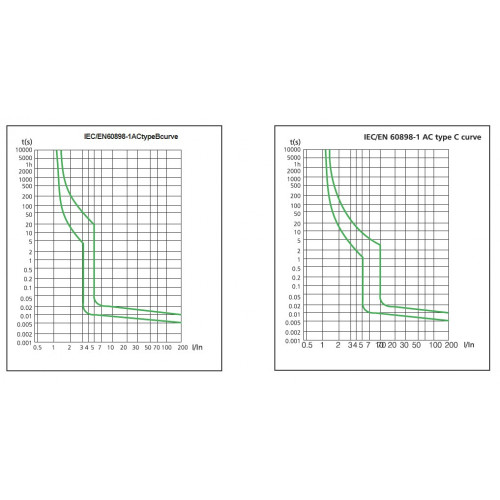

Choose MCB amperage and curve from the drop-down menu
| Rated Current: | 6A/10A/16A/20A/32A/40A/50a/63A |
| Rated Voltage: | 400V AC |
| Frequency: | 50/60Hz |
| Main Device: | SPD |
| Additional Devices: | MCB |
| Degree Of Protection: | IP40 |
| Total number of Ways: | 8 |

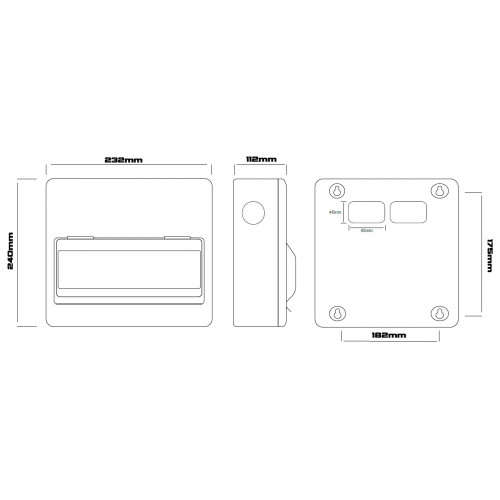

| Height: | 240mm |
| Width: | 232mm |
| Depth: | 112mm |
| Ambient Temperature (C): | -25+55 |
| Storage Temperature (C): | -35+55 |
| Material : | Metal |
| Standard: | BSEN61439-3, BS 7671 |
| Compliance: | UKCA, CE |
| Incoming Supply | 400V |
|---|---|
| Current Rating | 6A/10A/16A/20A/32A/40A/50a/63A |
| IP Rating | IP40 |
| Load Curtailment | No |
| MCB Included | Yes |
| SPD Included | Yes |
Three-phase 8 way IP40 Metal enclosure with 4 pole SPD + 4 pole MCB
- Product Code: GP-MCUSPD-***
- Availability: In Stock
