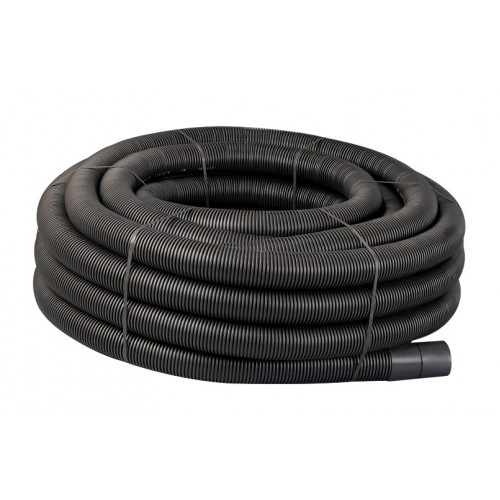

50/63mm BLACK Twin Wall Electric Underground Burial Ducting x 50 metres

HDPE/MDPE Twin Wall Ducting


Description

Twinwall HDPE ducting system for use in highways as underground ducting for electricity, gas and water supplies, and for street lighting cables and fibre optic cabling for telecommunications. Duct couplers are pre-fitted to one end of the coil.

Elastomeric seals can be supplied separately if required to minimise the ingress of dirt and roots to the duct system. We do not guarantee an airtight system if a seal is used on a coil. If an airtight system is required, please contact us.

Material

Duct: High-density Polyethylene (HDPE). Coupler: Polypropylene copolymer (PPCP). Seal (if ordered): EPDM Rubber to BS EN 681-1.

Colour

This listing is for Black colour. However, Twinwall Ducting is also available in a colour range of purple, orange, green, blue, yellow, red, grey, and brown, in accordance with NJUG guidelines.

Please contact us for details of other colours and requirements. Ducts are marked appropriately in accordance with customer requirements.

Quality System & Inspection

All quality systems and inspection procedures comply with BS EN ISO 9001: 2015 (Certificate No: FM 01420)

Standards & Certificates

Kitemark certified to BS EN 61386 part 24 (Certificate No. KM57808)

Storage

For long term storage keep away from direct sunlight to avoid product degradation, over 12 months exposure to direct sunlight should be avoided. Anticipated service life of the system is more than 50 years.



50/63mm BLACK Twin Wall Electric Underground Burial Ducting x 50 metres

  • Product Code: GP-NRO63
  • Availability: In Stock
